Munson Machinery Sanitary Paddle Blender Model HD-2.5-5-SSI


Contact Information

Phone: 1.800.944.6644


Munson Machinery Co. Inc
210 Seward Ave
Utica NY 13502
United States

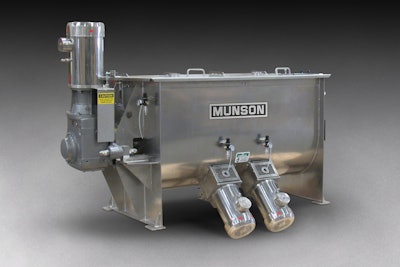

A Model HD-2.5-5-SSI Sanitary Paddle Blender from Munson Machinery provides added shear to de-agglomerate dry bulk solids, pastes, slurries and/or emulsions of low- to medium-density materials in batches up to 25 cu ft (0.71 m3). Fabricated of #304 stainless steel, it features a stationary U-shaped vessel with a flat cover, bottom discharge valve, and horizontal flange-mounted agitator that can be removed vertically for rapid sanitizing and maintenance, conserving floor space. A 10 hp (7.45 kW) wash-down duty motor drives the agitator shaft assembly configured with 16 radial arms and short-length paddles that move material in smaller zones over shorter distances with greater cutting action than possible with ribbon-style agitators. The combined action of paddles and agitators effectively blends solids with solids, and solids with low or high percentages of liquids to produce smooth pastes or slurries.
