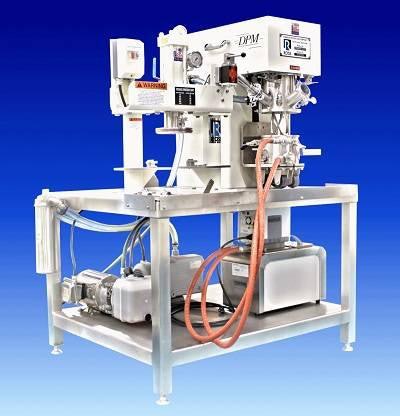

Ross’ 1-quart Double Planetary Mixer equipped with an air/oil hydraulic lift for raising and lowering the mix can to and from the operating position. It has two sets of interchangeable planetary agitators – helical high-viscosity stirrers and the classic rectangular blades. Product contact parts are stainless steel type 316 polished to 150-grit finish.
Rated for vacuum up to 29.5”Hg, the mixer features glass sight/charge ports and a tank light, heating/cooling jacket and a thermocouple for measuring product temperature. An open bath hot water heater is positioned on the lower shelf of the workbench, next to a vacuum pump that is plumbed to mixer and pre-wired to the mixer’s control panel. After each mixing cycle, the vessel is simply rolled over to a high pressure follower plate discharge system for direct transfer of the finished product into cartridges or other containers.
