A new 24-inch diameter pin mill model CIM-24-MS from Munson Machinery grinds, sizes, de-agglomerates and homogenizes friable or other materials into controlled particle sizes, from coarse to fine (400 mesh). Also known as a centrifugal impact mill, it is equipped with a stationary outer disc and a rotating inner disc, both of which are precision-machined and studded with impactor pins. As material enters through the center of the outer disc, centrifugal force created by the rotating inner disc propels the material radially through a destructive path of five intermeshing rows of rotating and stationary pins, producing the tight particle size desired by controlling the infinitely-variable rotor speed.

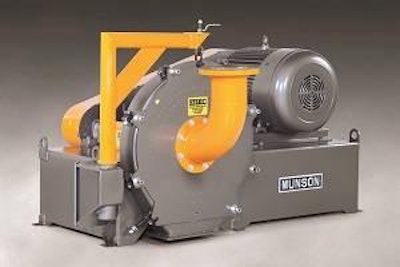

Munson Machinery pin mill model CIM-24-MS
Fill out the form below to request more information about Munson Machinery pin mill model CIM-24-MS
