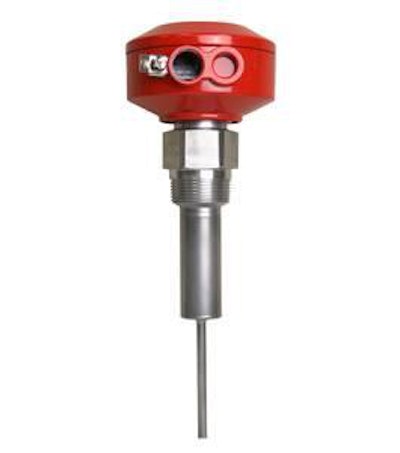

BinMaster CVR-625 mini vibrating rod


BinMaster offers the CVR-625 mini vibrating rod, a compact point level control designed for use in small bins and hoppers where other level sensors will not fit. This version features a design that allows for the detection of very light materials with a bulk density as low as two. The rod can be used for measuring plastics, food, seed, chemicals and other pellets or dry granular solid materials. It is wear and maintenance free and features a self-cleaning sensor. It is easy to install and does not require calibration. The rod features three sensitivity adjustments and is high and low level fail-safe. It is able to be mounted both on the top or side of a bin, with 1-1/4' NPT, and has a maximum pressure of 145 psi. It features a relay of SPDT 5A 250 VAC and an input voltage range of 20 to 250V AC/DC.
