Munson Machinery Co. Inc. rotary drum screen Model 24-RDS-72

53961

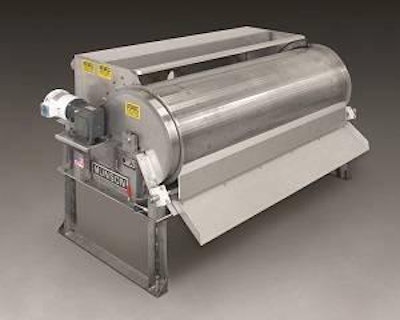

The compact rotary drum screen Model 24-RDS-72 from Munson Machinery removes solids from industrial and municipal waste streams, and recovers solid product from process streams, at rates from 600 to 2,790 gal/min (2,270 to 10,560 liter/min) without blinding or clogging the screen, while reducing floor space and headroom requirements compared with non-rotating equipment of equivalent capacity, according to the company. The stainless steel unit is comprised of a 24 in. (61 cm) diameter x 72 in. (183 cm) long cylinder with durable wedge-wire screening, a variable speed drive, head box, discharge chute and support structure. A variable-speed drive allows adjustment of drum rotation speed to achieve maximum dewatering effectiveness.
