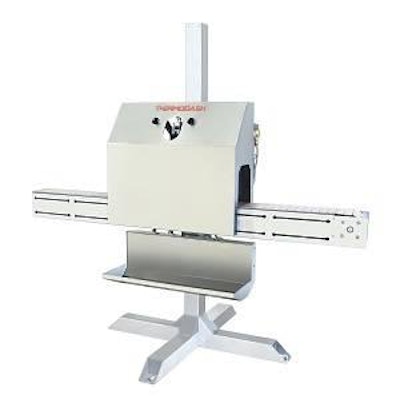

Axon Thermodash steam tunnel


Axon, powered by Pro Mach, introduces the Thermodash steam tunnel. Thermodash is the first in a series of steam tunnels from Axon designed to conserve energy and water while enabling high-quality shrink sleeve labeling on lines running at up to 100 containers per minute (CPM).Thermodash can operate on as little as four kilowatts (kW) of electricity and three gallons of water per hour. Axon engineers calculate that energy bills can be reduced by more than 80% and water consumption lowered by more than 60% when compared with 30 kW/10 gallon per hour steam tunnels in the same production class.Thermodash is sized for containers up to 4 inches (10.6 cm) wide and 10 inches (25.4 cm) tall. Customers can work with Axon on a custom Thermodash should their container size exceed these parameters.Thermodash features stainless steel double wall construction for years of reliable and safe operation. A cantilevered cover provides for easy access to tunnel components. Thermodash is designed for quick changeover and is available in one- and two-zone configurations. A compact steam generating system rated at 15 PSI (1.05 kg/cm2) is integrated on the back of the unit.
