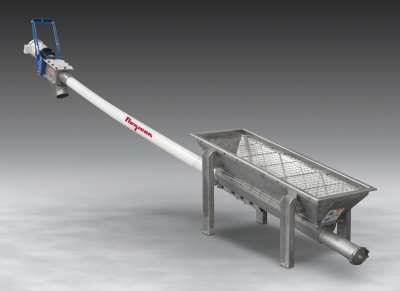

The Flexicon EE-1158EU Trough Conveyor is a flexible screw conveyor with trough hopper that can receive material from multiple outlets of feeders, grinders, blenders and other process equipment. The hopper features an extended-length charging adapter that exposes 1,143 mm of the flexible screw rotating within an inclined U-shaped trough to charge material entering the hopper at any point. The hopper is equipped with a stainless steel grate for worker safety and to prevent oversized particles from entering the conveyor.
The rugged inner screw is the only moving part contacting material and is offered in numerous designs to handle both free- and non-free-flowing materials including products that pack, cake or smear, with no separation of blends. As it rotates, the flexible screw self-centres within the tube, providing ample clearance between the screw and tube wall to eliminate or minimise degradation. Material exits the conveyor below the drive point, precluding contact with bearings or seals.
Smooth, crevice-free surfaces of the screw and tube interior allow in-place flushing with water, steam or cleaning solutions through a lower clean-out cap and/or upper discharge housing. The flexible screw can also be removed through the clean-out for separate sanitising and inspection of the polymer conveyor tube and stainless steel hopper, as well as the screw.
