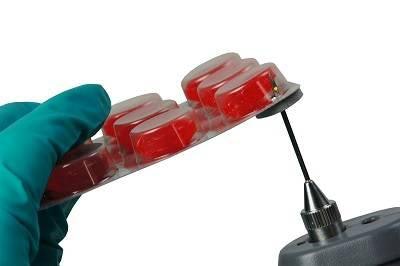

Mocon Inc.’s new OpTech-O2 Model P test system uses a patent-pending Pressure Needle and a sensor to automatically measure internal package pressure and calculate the correct oxygen reading. Internal package pressure directly impacts the accuracy of the oxygen reading.
The ability of the instrument to automatically compensate for the internal pressure when measuring headspace gas is particularly important for small packages, such as blister packs. This is because a variety of actions, such as the force required to insert the needle, can impact the internal pressure. The capability also benefits any package size with unknown internal conditions.
An additional benefit of the Pressure Needle is that the sensor is located at the tip and is inserted directly into the headspace, eliminating the need to extract headspace in order to conduct a test. The sensors are non-consuming, enabling long-term shelf-life studies by measuring the changes within the same package headspace.
MOCON’s OpTech-O2 technology relies on an optical sensor that “fluoresces” or gives off light directly related to the amount of oxygen present in the package headspace. In addition to headspace measurement the OpTech-O2 Model P is a useful tool for measuring oxygen permeation rates down to 1cc/(m2?day).
