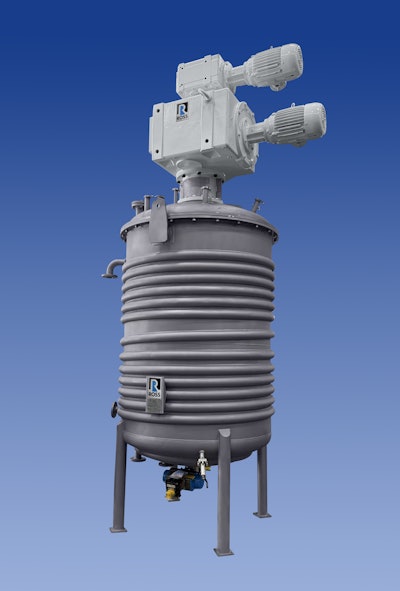

- ROSS’s custom Coaxial Mixer features independently driven agitators, a robust two-wing anchor and a high-speed pitched-blade propeller, each powered by 15 HP explosion-proof motors to ensure efficient mixing across a wide range of viscosities.
- Equipped with a NEMA 12 control panel, the mixer includes dual VFDs, Ethernet/IP capability, real-time speed/load displays and remote/local control options for precise process management.
- Engineered for versatility, the 1,100-gallon mixer handles full vacuum (to 29.5" Hg) and internal pressure (up to 15 psig at 300°F), with a two-zone ASME-certified half-pipe jacket for controlled heating and cooling.
- The fixed cover includes multiple ports and a manway with safety limit switch, while a 4” pneumatic flush tank ball valve ensures smooth, efficient product discharge.
