Hardy Process Solutions Weighing Components for Hazardous Areas


Hardy Process Solutions offers certified weighing components for use in classified hazardous areas. Hardyโ€™s scales, load cells and junction boxes meet common US and local safety standards with appropriate levels of certified protection for different application environments such as Class I / Division 1 and Class II / Division 1.

Intrinsic safety (IS) is a protection technique for safe operation of electrical equipment in hazardous areas by limiting electrical and thermal energy available for ignition to safe levels.  Hazardous (classified) locations might exist in any manufacturing location with vapors, dust or flyings, but are common in large bakeries (flour), plastics manufacturing plants (vapors or dust), chemical plants (vapors), paint-finishing locations (vapors), and grain silos (dust or flyings).

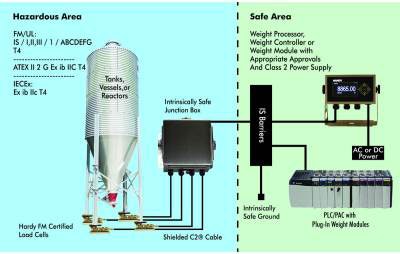

Hardy recommends using intrinsically safe low-energy components in hazardous areas (including load cells, scales, and summing boxes) and limiting power and current to them through intrinsic barriers that prevent energy from crossing over from the safe area. Hardy products for hazardous areas include:

  • A large number of Intrinsically Safe load cells, including OneMount, high-capacity rocker beams, compression load cells, tension load cells and single points
  • Junction boxes with Class I, Div. 1,  IECex, and ATEX certifications
  • Hardy Floor Scales, Lift Deck Floor Scales and Bench Scales

Weightless calibration and integrated diagnostics for safety in hazardous areas

Hardy Weight Processors, Weight & Rate Controllers and Plug-In Weight Modules use proprietary technologies for hazardous area applications and confined spaces. The Hardy Process Toolbox is a set of productivity tools that support industrial weighing functions. Each tool is meant to save time, increase accuracy, improve efficiency or reduce risk in process weighing applications.

Hardy C2 Electronic Calibration allows calibration of a weighing system from the safe area.  This reduces the risks of bringing test weights into the hazardous area, making it safer for operators with less risk of contamination.  Likewise, Integrated Technician performs system diagnostics and helps operators troubleshoot their weighing system from the front panel of the weighing instrument or via the PLC.
