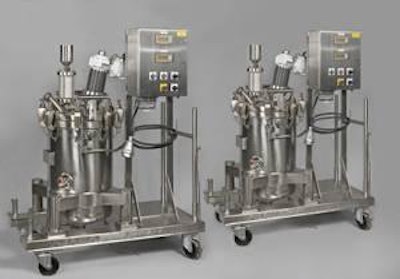

Charles Ross & Son Company skid-mounted agitated reactors

49680

Charles Ross & Son Company offers skid-mounted high-pressure reactors in its line of agitated reactors for chemical processe and sanitary applications. The 30-gallon dished-bottom reactors are equipped with a top-entering impeller agitator, dip tube, multiple feed ports, removable thermowell and flush bottom ball valve. Designed for 100 psig internal pressure at 200°F, the reactor vessels are built to ASME Code Section VIII, Div. 1 and registered with the National Board of Boiler and Pressure Vessel Inspectors. A dry-running single mechanical seal allows the agitator to be operated at the in-tank pressures. The vessel sides and bottom include a 50-psig baffled jacket for heating/cooling to the optimal reaction temperature.
